Factory Direct Qinkai Steel Strut Channels - Strong, Durable, And Easy To Install!

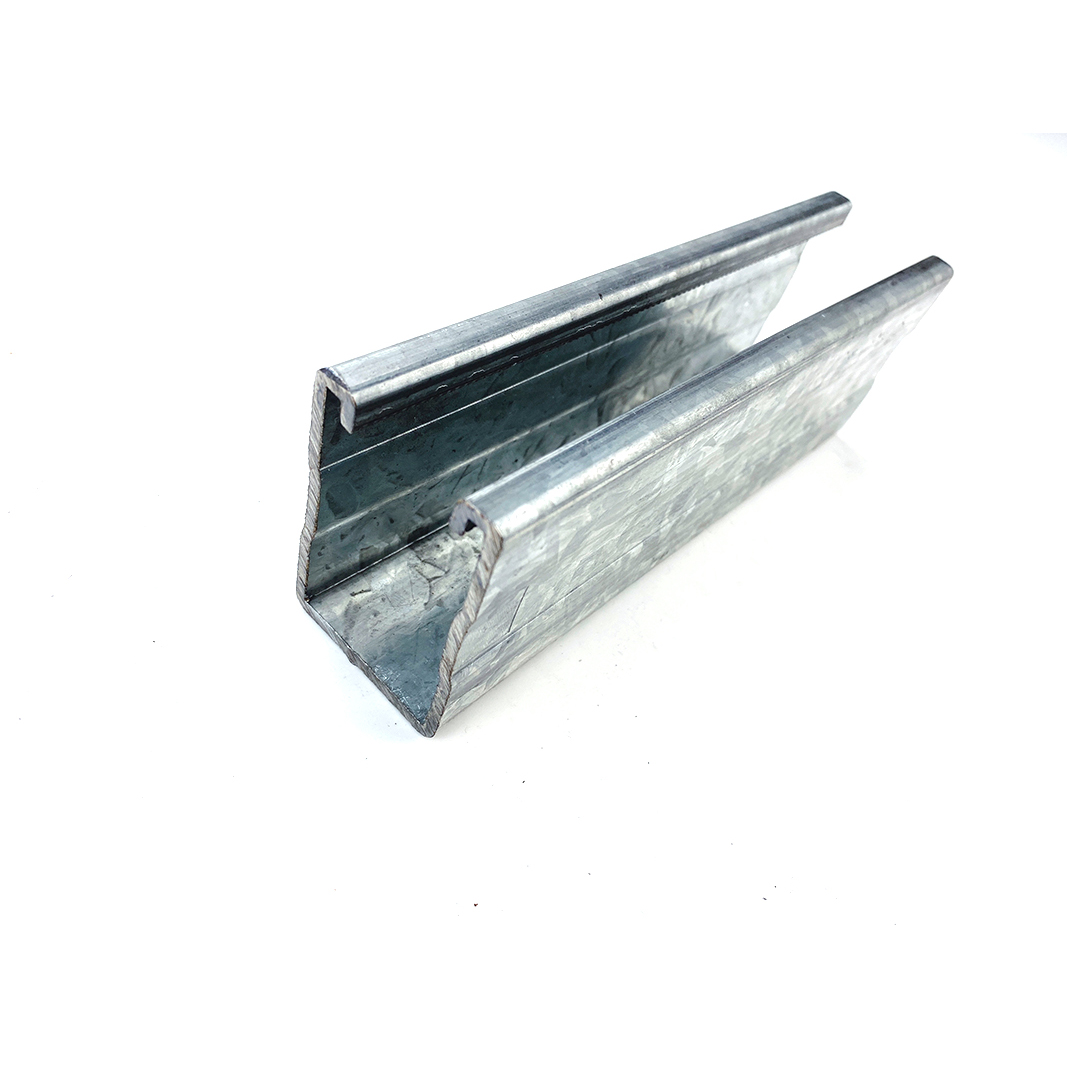

Qinkai Steel Stainless Steel Aluminum Frp Solid Strut Channel/Section Steel

41x41mm, 41x21mm, or 41x62mm Steel, Aluminium, or FRP Plain Channel/Strut in 6m lengths; Stocked in standard or ribbed profile versions

Technical Details

The load values shown are in accordance with AS/NZS4600:1996, using a minimum yield stress for Fy of 210 MPa on plain channel/strut. The published results are based on a uniformly loaded, simply supported span. Deflection has been calculated using standard formulae at the maximum permissible stress.

If you need know more about Qinkai Plain Steel Solid Strut Channel/Section Steel. Welcome to visit our factory or send us enquiry.

41x21x1.6mm Load Rating & Deflection

Span (mm)	Max. Allowable Load (kg)	Deflection at Allowable Load (mm)
250	350	0.31
500	175	1.22
750	116	2.76
1000	88	4.89
1250	70	7.65
1500	58	11.02
1750	50	15.00
2000	44	19.59
2250	39	24.82
2500	35	30.61
2750	32	37.04
3000	30	44.15

41x41x1.6mm Load Rating & Deflection

Span (mm)	Max. Allowable Load (kg)	Deflection at Allowable Load (mm)
250	945	0.16
500	471	0.65
750	314	1.46
1000	236	2.59
1250	189	4.05
1500	157	5.84
1750	135	7.94
2000	117	10.37
2250	105	13.80
2500	94	16.20
2750	85	19.62
3000	78	23.34

41x21x2.5mm Load Rating & Deflection

Span (mm)	Max. Allowable Load (kg)	Deflection at Allowable load (kg)
250	442	0.29
500	221	1.17
750	147	2.64
1000	110	4.69
1250	89	7.34
1500	73	10.57
1750	63	14.39
2000	55	18.79
2250	49	23.78
2500	44	29.35
2750	40	35.52
3000	37	42.27

41x41x2.5mm Load Rating & Deflection

Span (mm)	Max. Allowable Load (kg)	Deflection at Allowable Load (mm)
250	1308	0.17
500	654	0.68
750	436	1.53
1000	328	2.72
1250	261	4.25
1500	218	6.13
1750	187	8.34
2000	163	10.90
2250	145	13.80
2500	131	17.03
2750	119	20.61
3000	109	24.56

41x61x2.5mm Load Rating & Deflection

Span (mm)	Max. Allowable Load (kg)	Deflection at Allowable Load (mm)
250	2488	0.11
500	1244	0.45
750	830	1.02
1000	622	1.81
1250	498	2.82
1500	414	4.06
1750	355	5.54
2000	311	7.23
2250	276	9.16
2500	249	11.30
2750	226	13.68
3000	207	16.28
